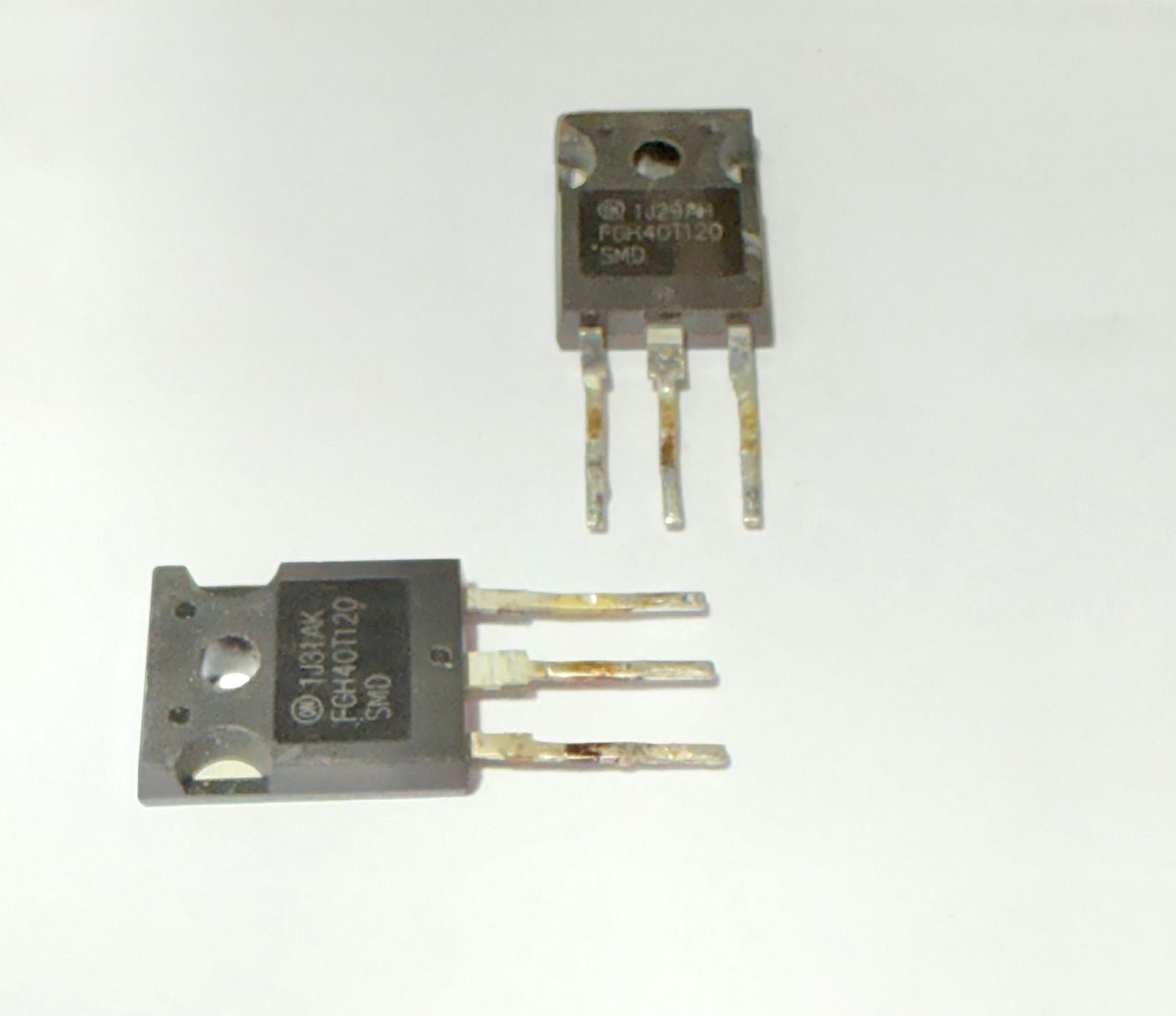

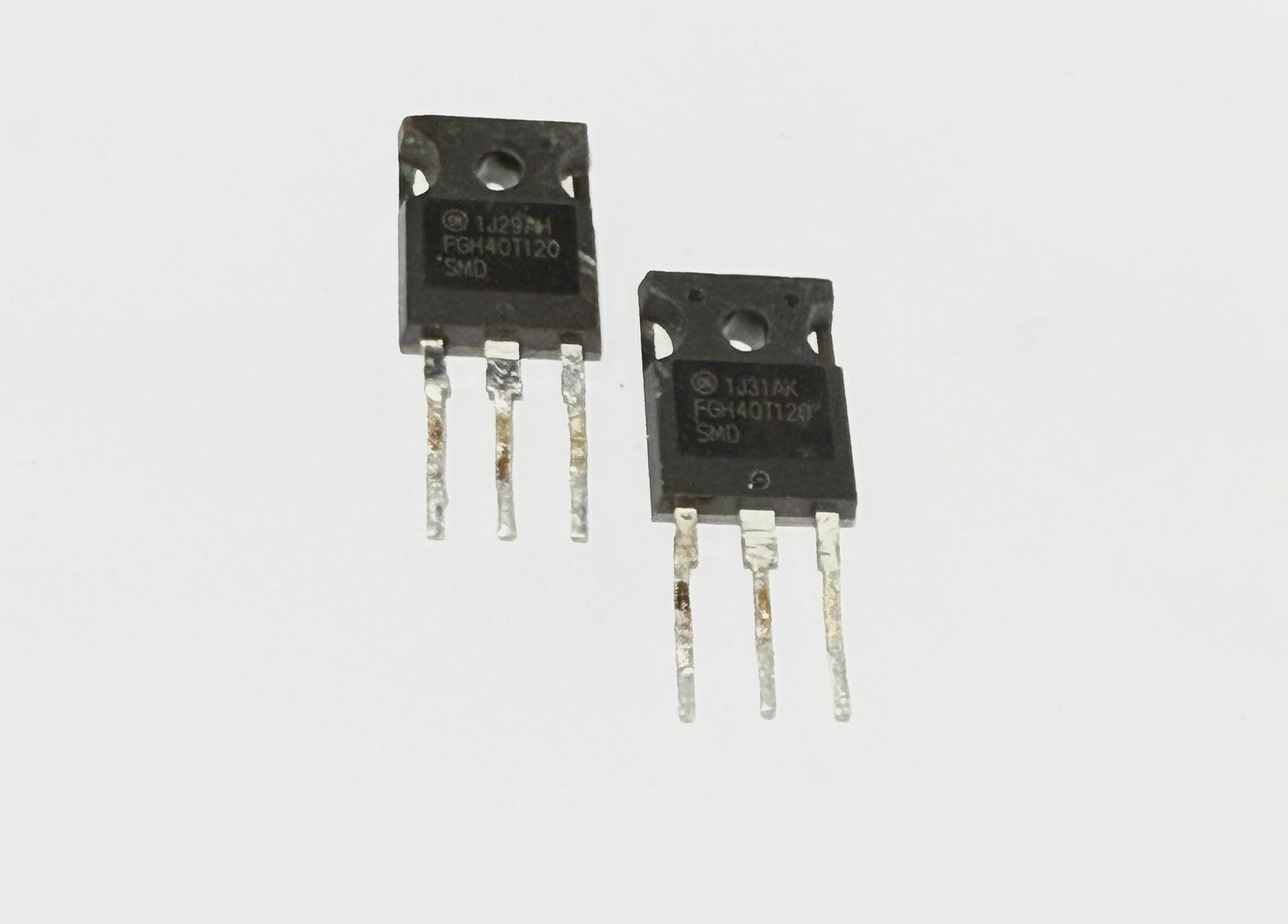

FGH40T120 Refurbished IGBT Tested (qyt 10)

~~Rs. 700.00~~ Rs. 550.00

The FGH40T120 is a High-Efficiency Field Stop (FS) Trench IGBT designed for hard-switching applications like solar inverters, welding machines, and Uninterruptible Power Supplies (UPS). It boasts a 1200V collector-emitter voltage, a 40A continuous collector current rating, and a low saturation voltage for high performance. The device utilizes FS Trench Technology for high speed switching and...

Categories : Mosfet and Igbt

FGH40T120 Refurbished IGBT Tested (qyt 10)

~~Rs. 700.00~~ Rs. 550.00

Description

The FGH40T120 is a High-Efficiency Field Stop (FS) Trench IGBT designed for hard-switching applications like solar inverters, welding machines, and Uninterruptible Power Supplies (UPS). It boasts a 1200V collector-emitter voltage, a 40A continuous collector current rating, and a low saturation voltage for high performance. The device utilizes FS Trench Technology for high speed switching and high input impedance, and features a co-packaged soft, fast reverse recovery diode.

Key Features and Specifications

Technology: Field Stop (FS) Trench IGBT Technology for high efficiency and performance.
Voltage: 1200V Collector to Emitter Voltage (BVCES).
Current: 40A Continuous Collector Current (IC).
Low Saturation Voltage: VCE(sat) = 1.8V at IC = 40A.
Switching Performance: High speed switching for efficient operation.
Integrated Diode: Soft, fast co-packaged free wheeling diode included.
Packaging: TO-247 package for through-hole mounting.
Temperature: Wide operating temperature range, up to 175°C.
